Data Overview

Sending events and user details from your servers to the MoEngage servers using the MoEngage Data APIs.

Data API Endpoints

Data API is a collection of the following APIs:

• Track User
• Get User
• Merge User
• Delete User
• Create Event
• Track Device
• Device Opt-out
• MoEngage Streams
• Bulk Import
• Trigger File Imports
• Import Details
• Import File Run History
• Install Tracking
• Test connection
• S3 Data Import

For workspaces in MoEngage with the User Identity Resolution feature enabled, the following Data APIs can be used to create or update users using a specific identifier, such as a mobile number or email ID, as configured in Settings > Data > Identity Resolution:

• Track User
• Create Event
• Bulk Import

For more information, refer to User Identity Resolution.

In MoEngage, data ingestion uses ID by default to create or update a user. For workspaces in MoEngage with Identity Resolution enabled, Data APIs (Track User, Create Event, Bulk Import) can be used to create or update users using a specific identifier, such as a mobile number or email ID, as activated in the Identity Resolution dashboard.

You can:

• Create users through Server-to-Server Data APIs even when they do not have an ID (but have other identifiers).
• Create a user or track events of a user when identifiers other than ID (for example, email ID or phone number) are known.

Request Headers

Header	Sample Value	Description
Authorization	{"Authorization": "Basic Base64_ENCODED_WORKSPACEID_APIKEY="}	Basic authentication is used for access control.
Content-Type	{"Content-Type": "application/json"}	Set the Content-Type header to application/JSON for using the Data API.
MOE-APPKEY	{"MOE-APPKEY": "Workspace ID"}	Set the MOE-APPKEY header available at Settings > Account > APIs > API Keys > Data.

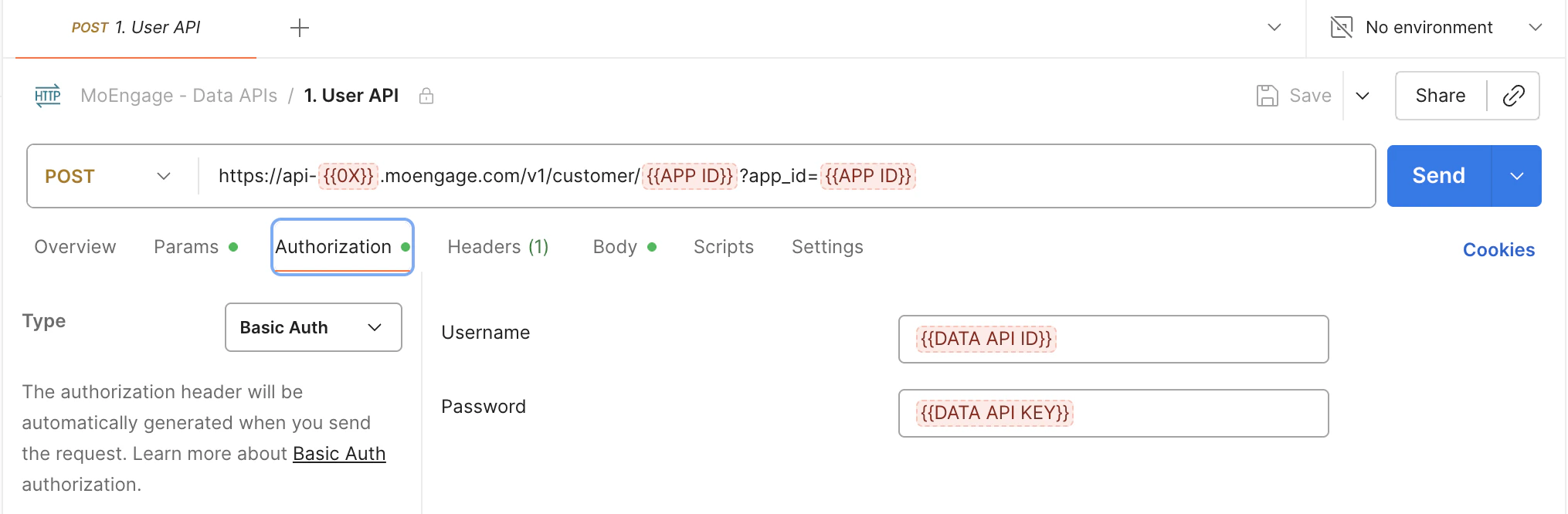

Authentication

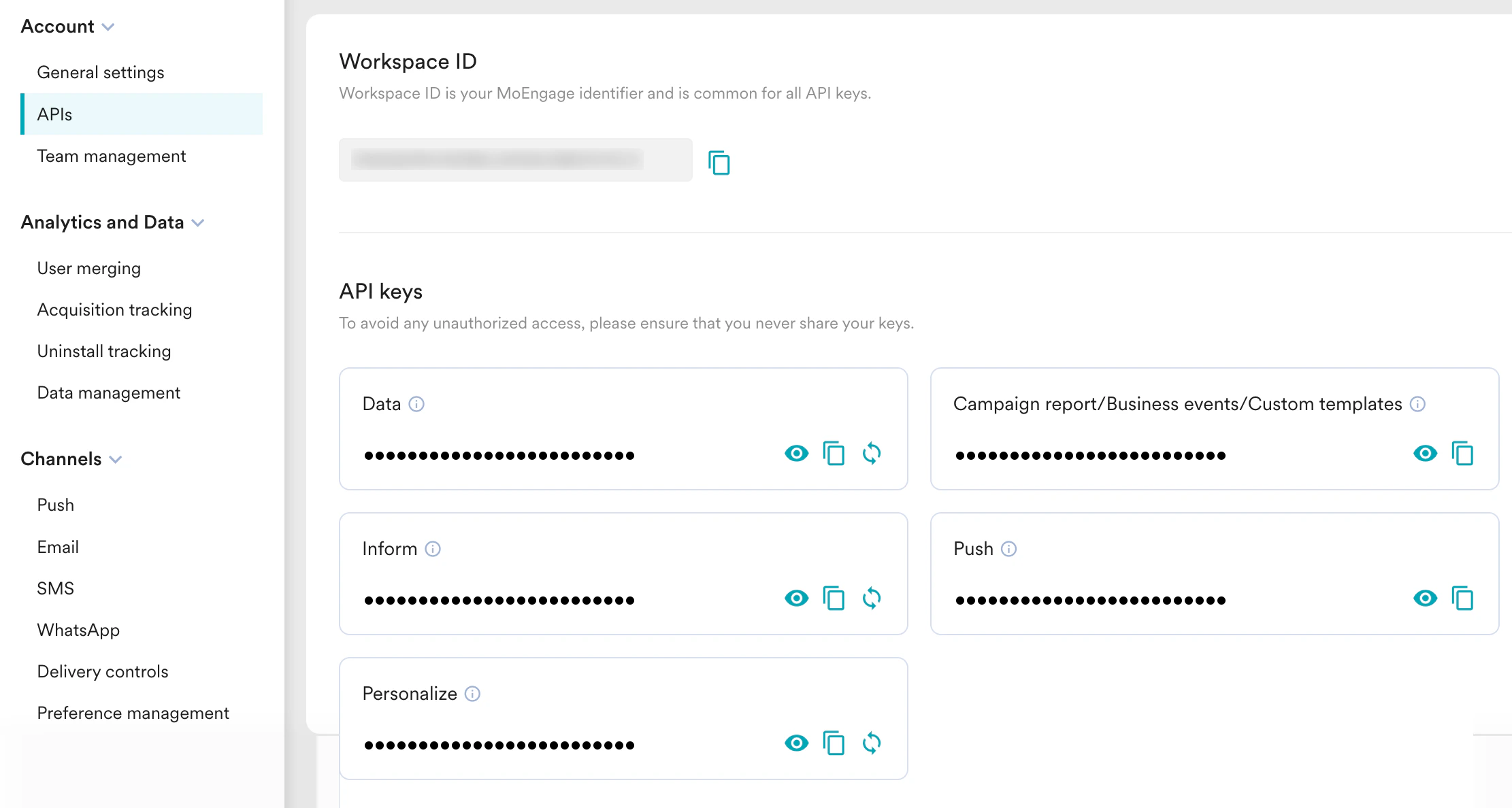

After you generate and save the Data API Key, DO NOT generate a new key unless there is a security breach. Once you generate a different Data API key and save it, your existing data tracking will need to be updated, as the authentication will start failing.

Authentication is applicable to the Create User, Create Event, and Bulk Import APIs. Authentication is performed using a client like Postman as follows:

Request Body

The request body contains the mandatory field called customer_id. customer_id is the unique identifier set and passed on from the MoEngage SDK as USER_ATTRIBUTE_UNIQUE_ID and is visible on the dashboard as ID.

customer_id is used to:

• Identify or create a user in MoEngage
• Associate the events with the corresponding unique user profiles in MoEngage.

On receiving a Data API request in MoEngage, the customer_id is used to verify if the user exists in MoEngage. If the user does not exist, a new user is created with the attributes or events.

• The maximum limit for the request body is 128 KB.
• Any string of more than one characters is allowed for customer_id except the following values - [‘unknown’, ‘guest’, ‘null’, ‘0’, ‘1’, ‘true’, ‘false’, ‘user_attribute_unique_id’, ‘(empty)’, ‘na’, ‘n/a’, ”, ‘dummy_seller_code’, ‘user_id’, ‘id’, ‘customer_id’, ‘uid’, ‘userid’, ‘none’, ‘-2’, ‘-1’, ‘2’]

For example, a user created using the following request is visible in the dashboard user profile as displayed.

Sample Request Body

Below is a sample request body for the Create User API:

{
"type": "customer",
"customer_id": "USERID1234",
"attributes": {
   "first_name":"John",
   "name":"John Smith",
   "plan_expiry_date":"2020-05-31T00:00:00Z",
   "super_user":true,
   "user_persona":"browsers",
   "platforms" : [{"platform":"ANDROID", "active":"true"}]
   }
}

You can not use “moe_” as a prefix while naming events, event attributes, or user attributes. It is a system prefix and using it might result in periodic blacklisting without prior communication.

Supported Datetime Formats

You can pass the datetime in the following formats in the request body:

Datetime Format	Example
“datetime_format”:YYYY-MM-DD[T]HH:mm:ss[Z]	2019-03-12T17:36:05Z
“datetime_format”: "YYYY-MM-DD"	2022-01-22

MoEngage performs the following validation on datetime formats before ingesting data into its system:

• Future and past date values are accepted and ingested.
• Any date values with incorrect calendar values (e.g., 2019-15-12 where 15 is not a valid month) are ingested as strings.
• Any datetime values incompatible with the formats mentioned above are converted to strings and then ingested.

Response

Response to the Data API is a JSON object. On a successful data API request, you will receive the following response:

{
  "status": "success",
  "message": "Your request has been accepted and will be processed soon.",
  "request_id": "kXwpDESb"
}

On a failed data API request, you will receive the following response:

{
  "status": "fail",
  "error": {
    "type": "TypeError",
    "message": "expected string",
    "request_id": "kXwpDESb"
  }
}

Response Codes

The following status codes and associated error messages are returned when the request results in a fatal error.

Error Code	Type	Message	Description
400	Missing header value	The Content-Type Header is required	The header value for content type is missing
400	Empty request body	A valid JSON document is required	The request body is empty
400	Malformed JSON	Could not decode the request body. The JSON was incorrect or not encoded as UTF-8.	The request JSON is not formed correctly
400	Blacklisted	Your account is blacklisted, Please contact MoEngage.	Your App is blacklisted in MoEngage
400	InvalidParams	Given app_id is invalid.	The App ID is invalid.
400	ParamsRequired	app_id is required in path/query params.	App ID is missing in the path or query params.
400	Empty request body	A valid JSON document is required	The request body is empty.
400	Body type is not JSON	A valid JSON document is required.	String Payload.
400	MissingAttributeError	key is expected to be datatype	The specified attributes are invalid
401	Authentication Required	Authentication Header Required	Authentication header is missing from the request.
401	Authentication required	No identity information found	Authentication header is empty.
401	Authentication required	Invalid identity information found	Failure to decode app_key and app_secret.
401	Authentication required	APP_KEY missing in the authentication header	App_key is not present in the authentication header.
401	Authentication required	APP_SECRET missing in the authentication header	App_secret is not present in the authentication header.
401	Authentication required	App Secret key mismatch. Please login to the dashboard to verify key	App secret key is wrong.
401	Authentication required	Invalid APP_ID used in Authentication Header	You have used an invalid APP ID in the authentication header.
403	Account Suspended	Account Suspended	Your account is suspended.
403	Account Temporarily Suspended	Account Temporarily Suspended	Your account is suspended temporarily.
409	Authentication Mismatch	App key mismatch in params and authentication	App_key in parameters and authentication does not match.
409	Authentication required	App Secret key is not set. Please login to the dashboard to set a key	App Secret not set.
413	Payload too large	The payload can not exceed 128KB	Request payload size is too large.
415	Unsupported Media Type	Unsupported Media Type	Unsupported media type.
429	Rate Limit Exceeded	Rate Limits for User / Event exceeded	You have exceeded the rate limits (number of users or events per minute) defined for your MoEngage account.
5xx	Server Error	Any other exception	This response is returned when the system runs into an unexpected error. We recommend that you retry every 2 seconds for a maximum of 5 times in such cases.

User Attributes

Key name	Display name	Fetch through Get User API	Update through Track User API	Create through Track User API
publisher_name	Publisher Name	yes	no	yes
campaign_name	Campaign Name	yes	no	yes
t_rev	LTV	yes	no	no
t_trans	No of Conversions	yes	no	no
moe_ip_city	Last Known City	yes	no	no
moe_ip_pin	Last Known Pincode	yes	no	no
moe_ip_subdivision	Last Known State	yes	no	no
moe_ip_country	Last Known Country	yes	no	no
moe_dtzo	User Timezone Offset (Mins)	yes	no	no
u_s_c	No. of Sessions	yes	no	no
u_l_a	Last Seen	yes	no	yes
cr_t	First Seen	yes	no	yes
u_mb	Mobile Number (Standard)	yes	yes	yes
uid	ID	yes	yes	yes
u_bd	Birthday	yes	yes	yes
u_em	Email (Standard)	yes	yes	yes
locale_language_display	Local Language	yes	no	no
locale_country_display	Local Country	yes	no	no
uninstall_time	Uninstall time	yes	no	no
installed	Install Status	yes	no	no
moe_cr_from	User Creation Source	yes	no	no
u_n	Name	yes	yes	yes
u_ln	Last Name	yes	yes	yes
u_gd	Gender	yes	yes	yes
u_fn	First Name	yes	yes	yes
geo	Geolocation	yes	no	no
moe_wa_subscription	WhatsApp Subscription Status	yes	yes	yes
moe_em_unsub_categories	Email Unsubscribed Categories	yes	yes	yes
moe_gaid	Google Advertising ID (Android)	yes	no	yes
advertising_identifier	Advertising Identifier (iOS &Windows)	yes	no	yes
web subscription url	Web Push Subscription Page URL	-	-	-
moe_sub_w	Web Push Subscription Status	yes	yes	yes
moe_w_ds	Browser Details	yes	no	no
moe_mweb	Mobile User	yes	no	yes
moe_i_ov	OS Version iOS	-	-	-
moe_it	Creation Source	no	no	no
moe_spam	Spam	yes	yes	yes
moe_unsubscribe	Unsubscribe	yes	yes	yes
moe_hard_bounce	Hard Bounce	yes	yes	yes
moe_rsp_android	Reachability Push Android	yes	no	no
moe_rsp_ios	Reachability Push iOS	yes	no	no
moe_rsp_web	Reachability Push Web	yes	no	no
moe_rsu	Reachability Push	yes	no	no
moe_sms_subscription	SMS Subscription Status	yes	yes	yes
moe_ds_bts_push_hour	Best time to send Push	yes	no	no
moe_ds_bts_email_hour	Best time to Email	yes	no	no
moe_ds_bts_sms_hour	Best time to send SMS	yes	no	no
moe_ds_mpc_best_channel	Most Preferred Channel	yes	no	no

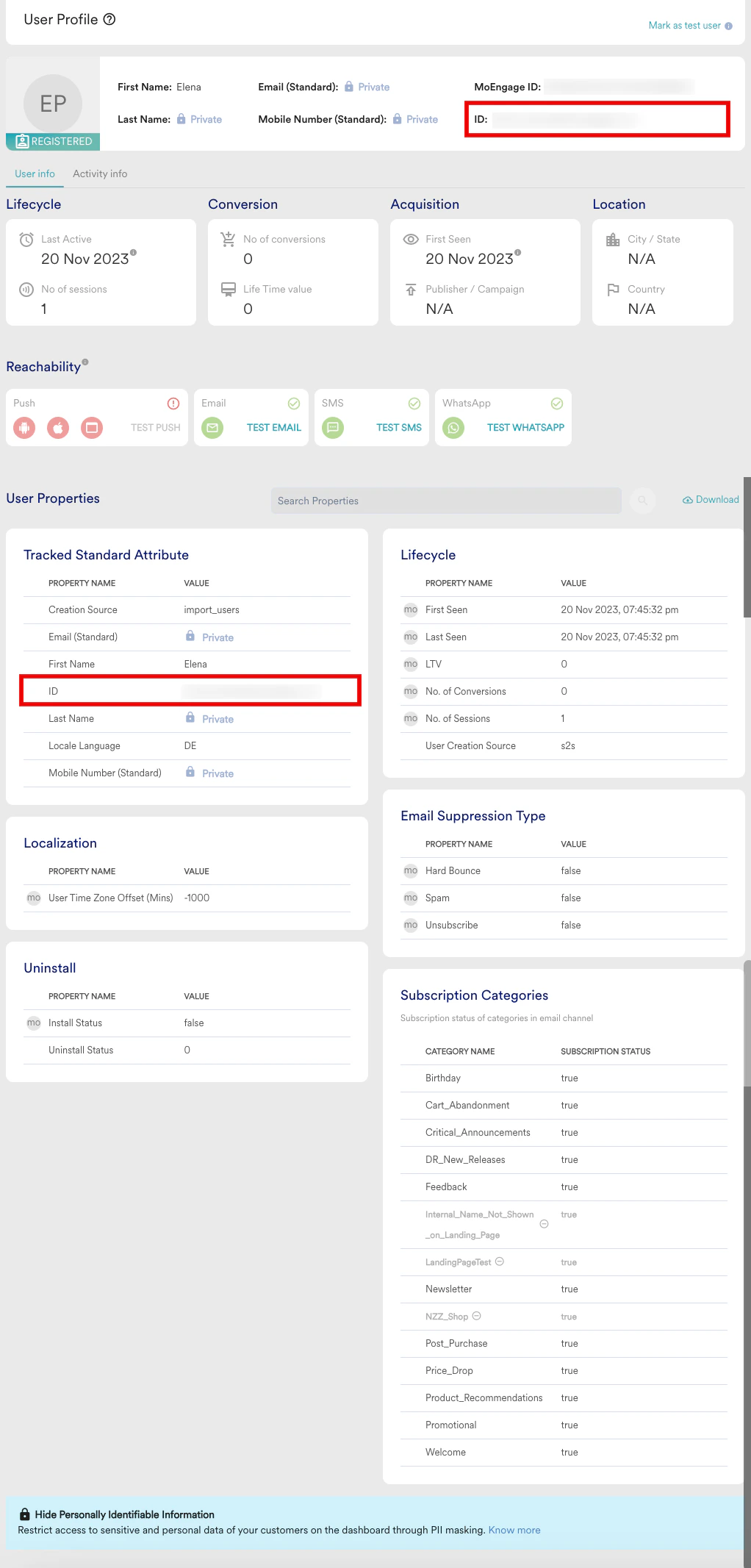

Dashboard User Profile

On sending data through the data API, it will be populated in the user profile as shown below:

Limits

The Data API is designed to handle high volumes of data across our customer base. We enforce API limits to ensure responsible use of the API. The following table describes the recommended rate limits of the Data APIs:

API Name	Rate Limit	Description
Track User	10,000 users/min	A single API request contains one or more user updates. Maintain a rate limit of 10,000 user updates per minute.
Create Event	30,000 events/min	A single API request contains one or more events. Maintain a rate limit of 30,000 events per minute.
Track Device	10,000 devices/min	A single API request contains one or more device updates. Maintain a rate limit of 10,000 device updates per minute.
Bulk Import	10,000 users/min 30,000 events/min	A single bulk import API contains users, devices, and events together. Send a maximum of 10,000 users and 30,000 events per minute across all API requests.

• The values mentioned above are default limits. If your requirement exceeds these limits, you can get in touch with the MoEngage support team to increase the limits.
• Make sure to adhere to the Fair Usage Policy (FUP) for high-frequency user data ingestion. This is mandatory to prevent disruption to data processing in your workspace. For more information, refer to the Fair Usage Policy (FUP).

FAQs

Track User

How do we reduce the 5xx errors because of too many requests per second/minute?

Please attempt exponential backoff of requests to ensure there is no data loss due to 5xx errors.

How do I know if my user data has been ingested into MoEngage?

Getting a 200 status code as a response from MoEngage only indicates that the users in your API payload have been accepted for processing. It does not ensure that the users sent to MoEngage have been successfully ingested.
Although, this happens very rarely and you can search for newly ingested users in:
Segment > Create Segment > Search for users using their IDs

Can I use this API to also export users?

Please use the Get User API to export the users.

Can I use this API to delete users from MoEngage?

Please use the Delete User API to delete existing users in MoEngage.

Get User

How do I know which users are available to export and which users are not available in MoEngage to export?

All available users will be found in the users key, and users not available will be found in the users_not_found key. Please refer to the sample response in this doc.

What if I want to get all the user data available based on the user IDs without specifying the fields?

If the user_fields_to_export is not passed, then all custom attributes and exportable standard attributes will be returned. For specific fields, user_fields_to_export needs to be passed along with the list of required fields.

Merge User

Will the merged user information be available after using this API?

No, the merged user will get deleted after calling this API. All the user attributes and devices of the merged user will be transferred to the retained user.

What will happen to the reachability of the retained user?

The reachability status of the user will be recalculated based on the devices present after merging the user.

Can any two users be merged?

Any registered user present in the MoEngage system can be merged with another registered user irrespective of the source of creation.

Should both users have a device attached to them before merging?

Not necessarily; we allow the merging of users with or without devices.

Is there any restriction on the number of times a user can be merged?

No.

Is there any restriction on the number of devices a merged/retained user should have?

No.

What happens to the merged_user after the merge?

This user will get deleted, and if any devices are attached to this user, they will be associated with the retained_user. All events and user details of the merged_user will reflect on the retained_user. A merge event MOE_USER_MERGE_EVENT will be added to the merged_user (who will only have the MoEngage ID now).

What happens to the retained_user after the merge?

The retained_user will now have all the user, device, and event details of the merged_user along with its own existing details. A MOE_USER_MERGED event will be added to the retained_user.

What happens if a user creation request comes with the same ID as the deleted user?

We will create a new user with that ID, but the MoEngage ID of this user will be different compared to the deleted user.

What happens to the reachability if both users do not have devices?

The user will not be reachable.

What is the SLA to see user details reflect after the merge?

The maximum SLA is 30 minutes.

How are events copied from the merged user to the retained user?

In the user profile, all events of the last 30 days are moved from the merged user to the retained user.

Delete User

Can you reverse a delete operation?

There are no rollback mechanisms for undoing the delete action. Once the delete request is processed, the user is deleted from MoEngage.

Are the events of the users also deleted as well?

No, the events corresponding to a user are not specifically deleted; only the user and the user attributes are deleted when the delete API request is processed.

However, once the user is deleted from MoEngage, the events corresponding to the user will not be accessible. For example, if an event is used in a segmentation query, the deleted user who executed that event will not be added to the calculated segment or campaign.

How do you check if a user has been deleted from MoEngage?

Navigate to Segment -> Create Segment on the MoEngage Dashboard. Type the unique identifier for the deleted user (ID, MoEngage ID, phone number, email, or any unique identifier you have configured). If the user has been deleted (hard delete), you will not see any search results. For more information about searching users, refer to [Search User in Segmentation].

Create Event

How to identify the events to a given user? What identifiers can I use?

Events in the payload need to be mapped to a given user who has executed the event. You must use the Customer ID to identify the events mapped to a customer.

Can I send events for anonymous users?

No, anonymous users can be tracked using MoEngage SDKs.

Can events be updated/modified?

Events in MoEngage are immutable, meaning events can only be created; they cannot be updated or deleted.

Track Device

Can I pass custom device attributes using the Device API?

No, you can pass only the device attributes mentioned above. Any additional custom attributes passed in the API payload are dropped during processing.

What happens if I pass the Identifier for Vendors (IDFV) value in the API?

The device will be created based on the Android platform, and the IDFV value passed in the API will be dropped. If the platform is iOS and a GAID value is passed, the device will be created with iOS, but the GAID attribute will be dropped.

How many devices can I create for a user?

You can create a maximum of 1000 devices for a user. The user will be blocked if a 1001st device is created for the user.

What if I create a new device with a moe_gaid, idfv, or push_id value that already exists for an existing device attached to a user in my MoEngage workspace?

In such cases, the existing device will be deleted, and the new device will be added.

MoEngage Streams

What is the throughput, average volume, and batch size that can be expected?

The throughput and average volume of each API request depends on the volume of selected events captured into MoEngage. The default batch size (number of events for each API request) is 100.

What is the retry mechanism of Streams?

The retrial mechanism allows MoEngage to hit your provided endpoints in multiple attempts. In case a batch of events fails (anything other than a “2XX” response from the endpoint is considered failed), the entire batch is retried. MoEngage makes a total of three retry attempts with the following intervals:

• First Retry: 30 seconds
• Second Retry: 60 seconds
• Third Retry: 120 seconds

If I pause Streams, can I still get the data later?

If you pause Streams, data is not collected for exports and hence cannot be replayed at a later date.

Does Streams guarantee the latest user attributes?

No. Streams is primarily built to export your events in near real-time. Since user attributes in MoEngage are updated asynchronously, it is currently not possible to guarantee the latest values of user attributes in the exports.

Can I export historical data using Streams?

As of now, you cannot export data that occurred before configuring Streams. Once configured, you will start seeing data for each event from the moment you enable your exports.

Bulk Import

Do the internal MoEngage validations of Track User API and Create Event API apply in Bulk API as well?

Yes, Track User API validations apply to the Customer payload type, and Create Event API validations apply to the Event payload type within the Bulk API request.

How do we reduce 5xx errors caused by too many requests per second or minute?

Please implement an exponential backoff strategy for your requests. This ensures that your system gradually reduces request frequency during high-load periods, preventing data loss due to server-side errors.

How do I know if my user data has been ingested into MoEngage?

Receiving a 200 OK status code only indicates that the users in your API payload have been successfully accepted for processing. It does not guarantee that the ingestion process is complete.

While failures are rare, you can verify ingestion by searching for the users in the MoEngage Dashboard: Navigate to Segment > Create Segment > Search for users using their unique IDs.

Trigger File Imports

Does the trigger API change the import schedule?

No, the schedule still remains the same as originally set up in the MoEngage Dashboard.

Postman Collection

We have made it easy for you to test the APIs. Click here to view the collection in Postman.
